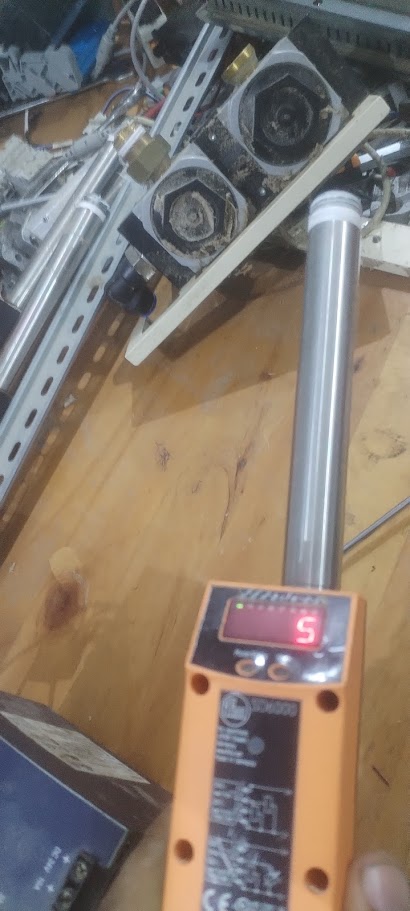

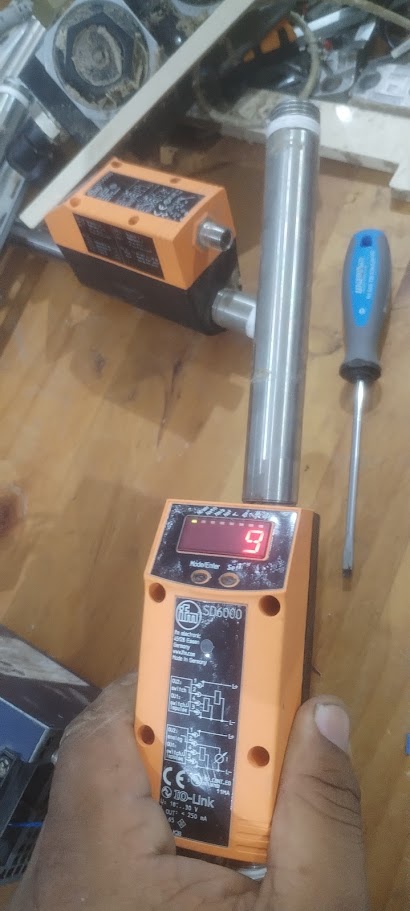

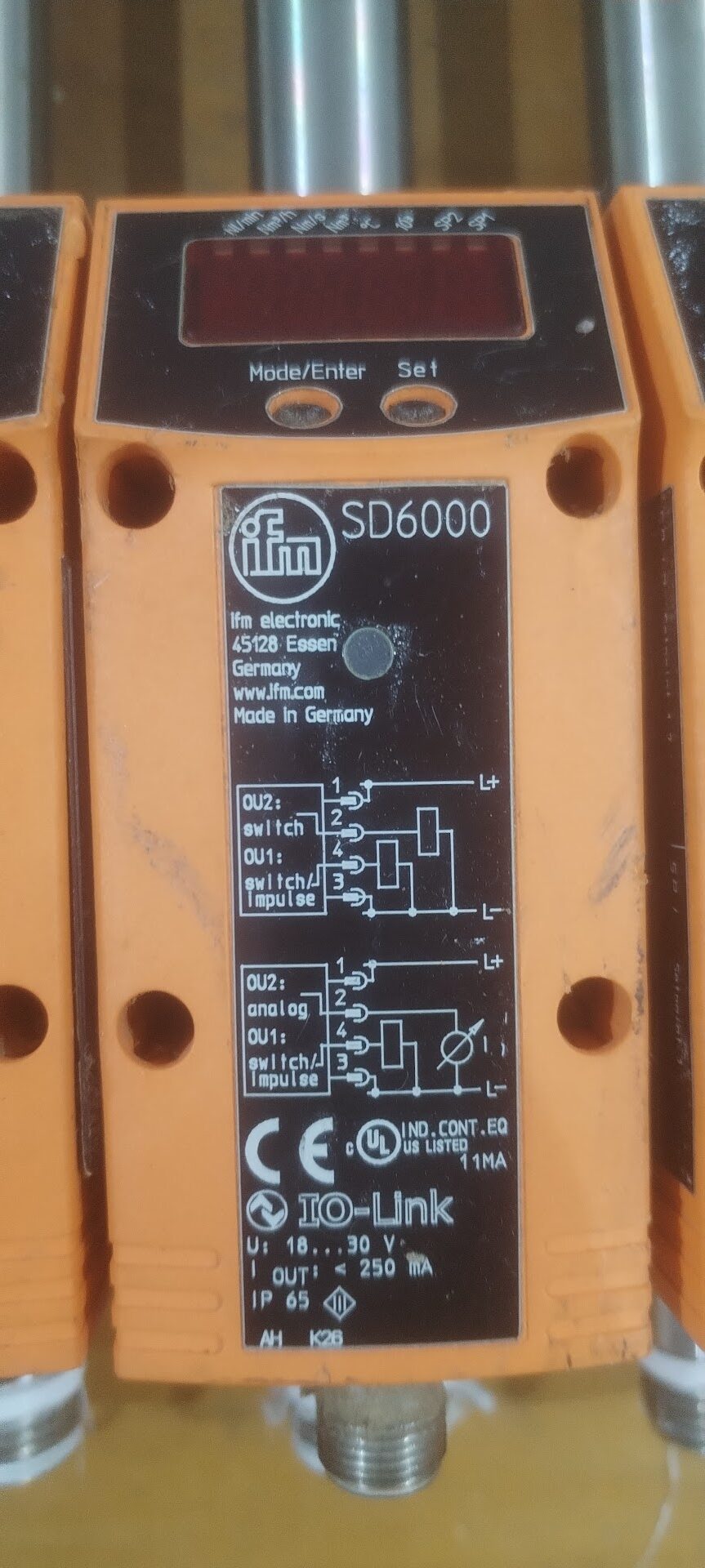

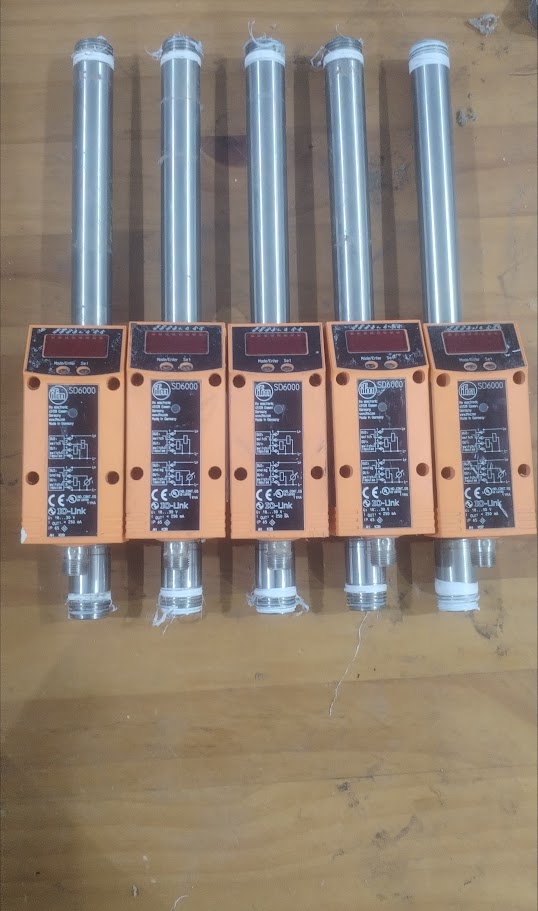

IFM SD6000 compressed air flowmeter.

Precise measurement of flow, consumption and medium temperature.

High accuracy, repeatability and measurement dynamics.

For detecting compressed air in industrial use.

With switching output, analogue output and pulse output.

Clearly visible 4-digit LED display

Convenient operation via buttons or parameter setting via IO-Link.

Number of digital outputs: 2; Number of analogue outputs: 1

Measuring range : 10…1250l/min      0.3…103.6m/s     0.2….75m³/h

Process connection : threaded connection R 1/2 external thread DN15.

application: for industrial application.

medium: compressed air

medium temperature : 0….60 °C

pressure rating : 16 bar.

operating voltage : 18…30 DC.

current consumption < 110 mA

output signal : switching (PNP), analog, Pulse, IO link.

output function : NO/NC configurable via parameters.

Short circuit protection : yes.

reverse polarity protection : yes.
